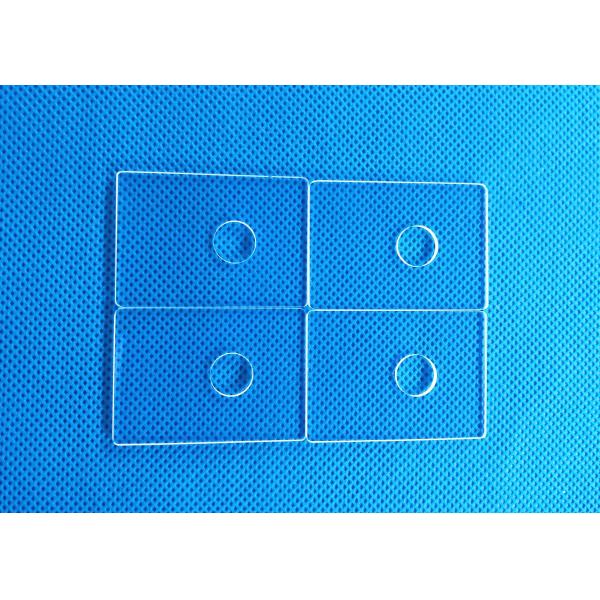

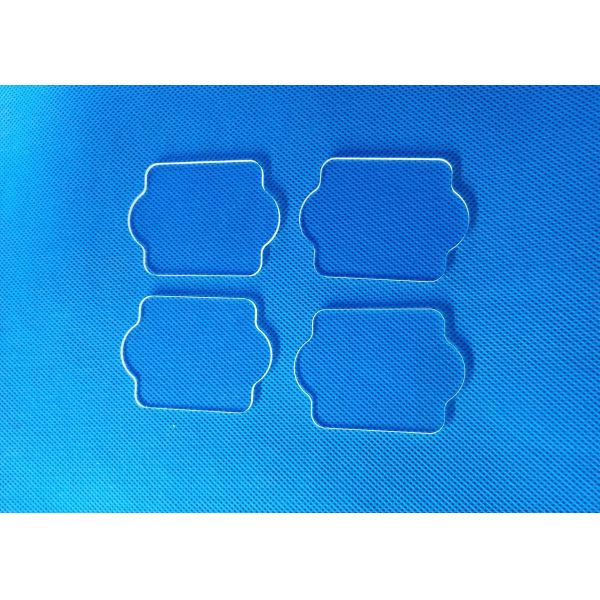

Laser Drilling Varieties Size And Shape Hole SIO2 Quartz Glass Plate

Lianyungang Shengfan Quartz Product Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Laser Drilling Varieties Size And Shape Hole SIO2 Quartz Glass Plate

  • 1
  • 2

Brand Name : shengfan

Model Number : QP-1

Certification : ISO9001

Place of Origin : China

MOQ : 10 pieces

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 100,000 pieces/month

Delivery Time : 5-15 work days

Packaging Details : plastic bubble/ polystyrene foam sheet/ carton/ wooden pallet

Product Name : Quartz glass plate

Material : SIO2

Hardness : morse 6.5

Working temperature : 1100℃

Surface quality : 20/40 or 40/60

Dieletric strength : 250~400Kv/cm

Light Transmittance : >92%

Contact Now

Product description:

Quartz glass disc is made of fused quartz in special industrial technology glass which is a very good base material.

Quartz glass has excellent physical and chemical properties: high purity, strong transmission, strict size control, low OH content and so on. The deep processing would be done according to client's requirements, like neat cutting, punching,finish milling, fire polish, bending, sealing, polished and so on.

Product Details
1.SiO2> 99.99% ,high purity quartz tube.
2.Operating Temperature: 1250℃ SoftenTemperature: 1730℃.
3.Excellent visual and chemical performance .
4.Without surface coating and infectant.
5.Health care and environmental protection.
6.Any dimension can be made.
7.CE.RoHs SGS approved.

Application of quartz plate:

Military industrial complex, machinery, metallurgy, printing and dyeing, optical instruments, high temperature sight glasses, fire hole industries such as high temperature and other industries, electric light source equipment, Labortory instrument, chemical apparatus.

Shengfan Quartz plate characteristic
*Brand shengfanquartz
*SIO2 99.9%
*Density 2.2(g/cm³)
*Color Transparent
*Standard JGS1,JGS2,JGS3
*Light Transmittance >92%
*Hardness Mose 6.5
*Resistance Value 1000 times than ordinary glass

JGS1(ZS-1) JGS2(ZS-2) JGS3(HS)
Spectral characteristics 180-2500nm 200-2500nm 260-3500nm
The average transmittance 90% 85% 85%
Bubble class 0 2 2
Birefringence 1-2 1-2 1-2
Grain structure 1 2 2
Fringe 1-2 2 2
Uniformity 1-2 2 2
Fluorescence 1 2 2
Radiation Performance Does not change clolor Sight discoloration Change color

Laser Drilling Varieties Size And Shape Hole SIO2 Quartz Glass Plate

Laser Drilling Varieties Size And Shape Hole SIO2 Quartz Glass PlateLaser Drilling Varieties Size And Shape Hole SIO2 Quartz Glass PlateLaser Drilling Varieties Size And Shape Hole SIO2 Quartz Glass Plate

Company Introduction:

Lianyungang Shengfan Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate,quartz tube,quartz flange,quartz ring,cuvette and quartz instrument. The company is located in China Crystal Capital - Donghai City, Jiangsu Prov., China. 70 km far from Lianyungang port, convenient transportation.With the philosophy of Technology Orientation, Quality First,Integrity and Responsibility,Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.
LIANGYUNGANG SHENGFAN QUARTZ PRODUCTS CO., LTD
TEL : 00860518878938285
Mobile : 008619901512909
Wechat : shengfanquartz
E-mail : shengfanquartz@163.com
Website : https://shengfanquartz.1688.com
Address : NO.169 Mingzhu Rd, Economic Development Zone, Donghai country,Lianyungang city, Jiangsu prov.,China.
FAQ:
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the delivery time?
A:Within 15 days after receiving deposit.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How to proceed an order in your factory?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5. How do you ship the goods and how long does it take to arrive?
DHL, UPS, FedEx or TNT are optional for small order. It usually takes 3-5 days to arrive.
Airline and sea shipping are also available.
